The critical core of pipe extrusion. Our custom-engineered die heads ensure uniform wall thickness, balanced melt pressure, and stress-free distribution for both single and double wall corrugated pipe manufacturing.

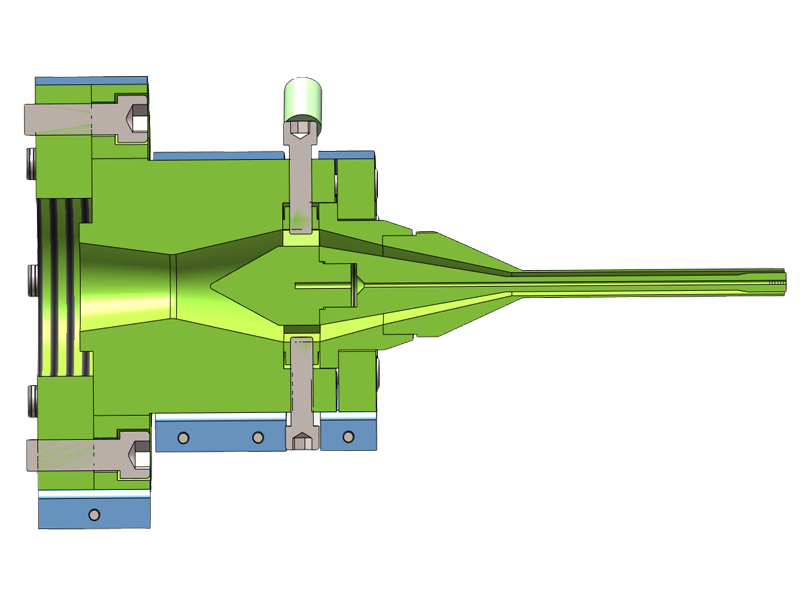

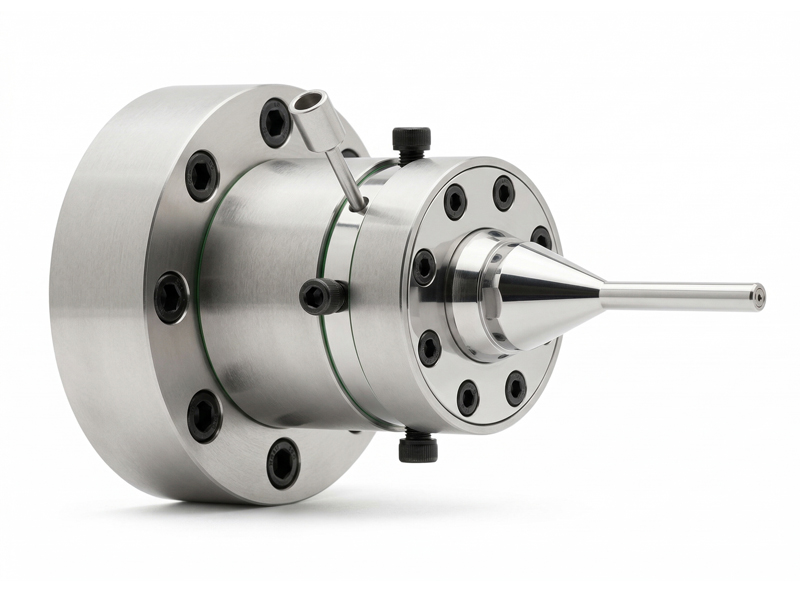

The most reliable solution for standard corrugated pipe extrusion. This straight-out design utilizes a precision flow divider cone to perfectly balance extrusion pressure. The modular design makes changing the die lip and core pin exceptionally simple and fast.
Optimized internal cone structure ensures evenly distributed melt pressure for perfect pipe concentricity.
Crafted from high-grade 40Cr tempered and forged tool steel, achieving a hardness of over 20HRC to withstand extreme high-pressure extrusion without deformation.
Engineered for operational efficiency, allowing operators to swap mold sizes rapidly with minimal downtime.

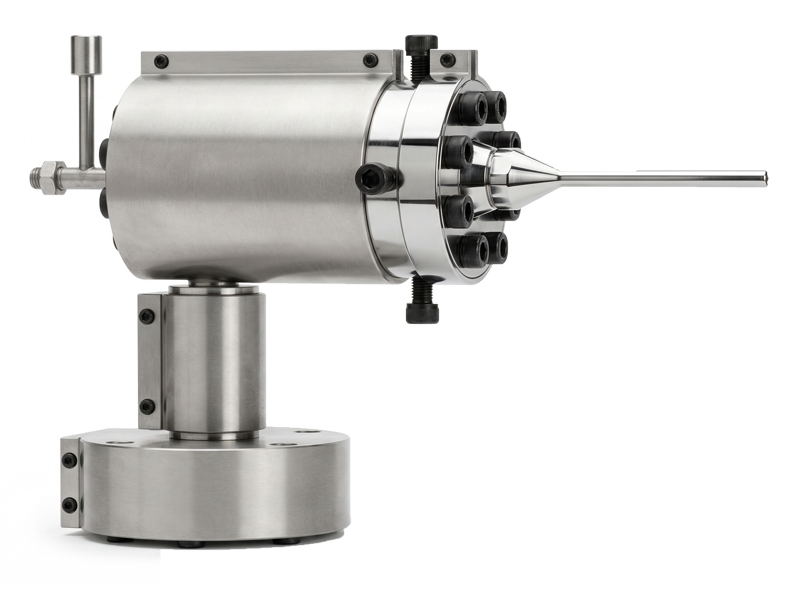

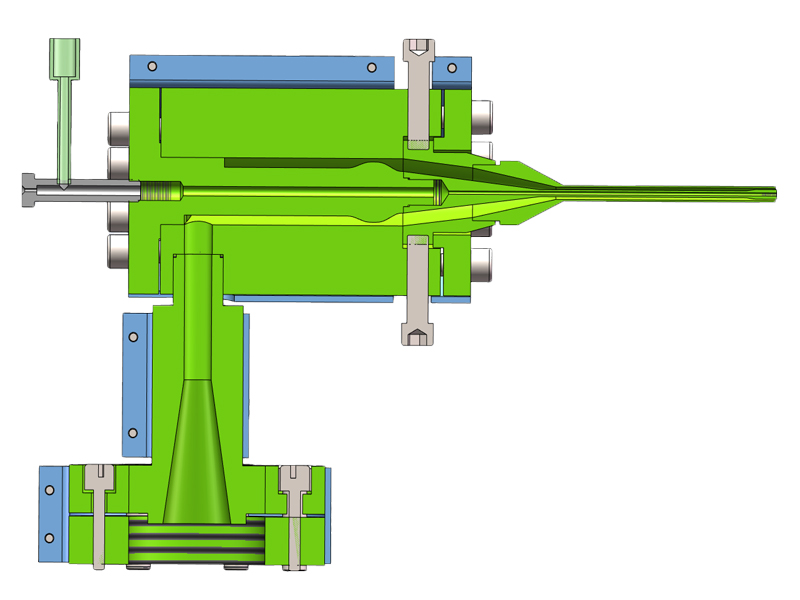

A specialized extrusion die where the extruder and corrugator form a 90-degree angle. Utilizing a spiral or heart-shaped flow divider, this die head is highly suited for PE and other plastic corrugated pipes that require continuous iron wire threading during high-speed production.
The right-angle setup reduces the total production line length by approximately 2 meters (while increasing width by 2m), ideal for compact factory floors.
Advanced melt distribution specifically calibrated to handle diverse polymer melts and complex continuous iron wire threading applications.
Constructed entirely from 40Cr tempered and forged steel for maximum thermal stability and resistance to internal abrasion.

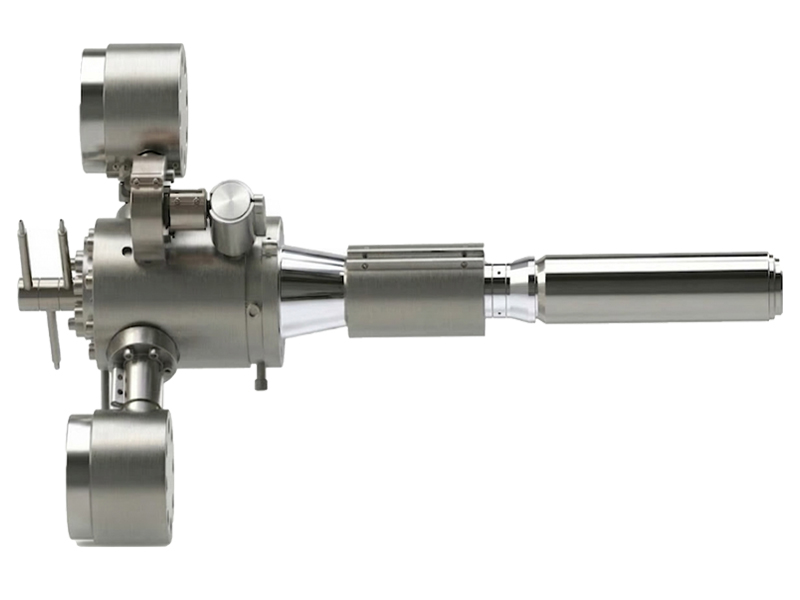

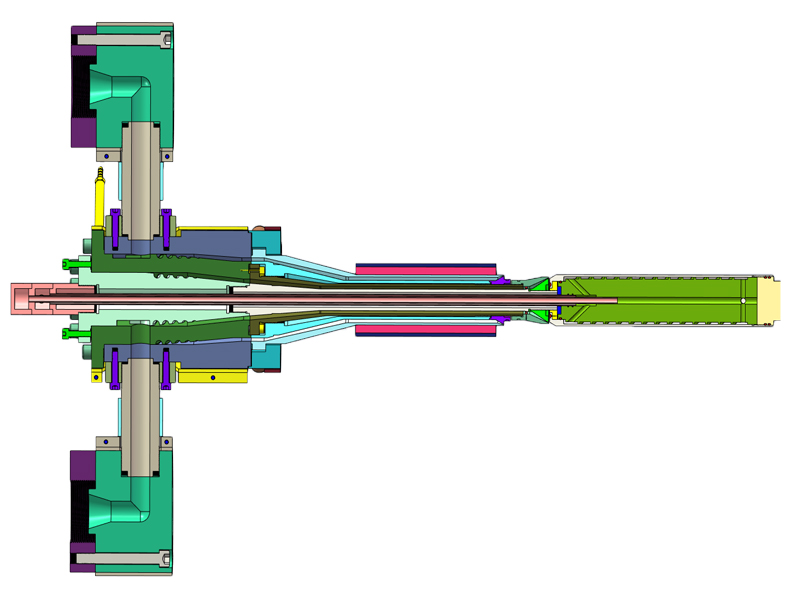

The pinnacle of corrugated pipe extrusion technology. Our DWC die heads feature a complex multi-layer spiral flow structure with integrated air and water channels. Wings Plastic's proprietary short-body design drastically reduces melt resistance, enabling highly efficient low-temperature and low-pressure extrusion.
The specialized short-body geometry minimizes melt pressure (e.g., OD 40/50 sizes operate at ≤ 40MPa), significantly reducing energy consumption.
Inner layer eccentricity (wall thickness deviation) can be easily adjusted on-the-fly without stopping the machine or dismantling the water jacket.
Manufactured from special high-strength alloy tool steel. The die lips are deeply nitrided for extreme wear resistance and zero deformation.
Our engineers can design a die head tailored to your material, diameter, and production speed requirements. Contact us for a detailed consultation.
