The ultimate extrusion solution for manufacturing heavy-duty hydraulic hose protectors and flexible electrical cable guards. Choose between advanced tape-wrapping for large diameters (10–160mm) and precision inline slitting for small-diameter wire protection (4–24mm). Engineered for exceptional wear resistance, precise spiral pitch, and versatile profile customization.
Produces robust PE/PP guards (10–160mm) via advanced wrapping. Protects excavator hydraulic hoses and heavy machinery cables from extreme abrasion and harsh environments.
Dedicated small-diameter (4–24mm) machine with precision slitting. Ideal for organizing and shielding wire harnesses, automotive cables, and industrial electrical lines.
Advanced die designs allow for co-extrusion dual-color profiles, multi-color marking lines, flat, and curved shapes to meet diverse customer branding and functional needs.
A flexible 5-stage configuration covering both tape-wrapping and inline slitting methods for maximum output and profile precision.

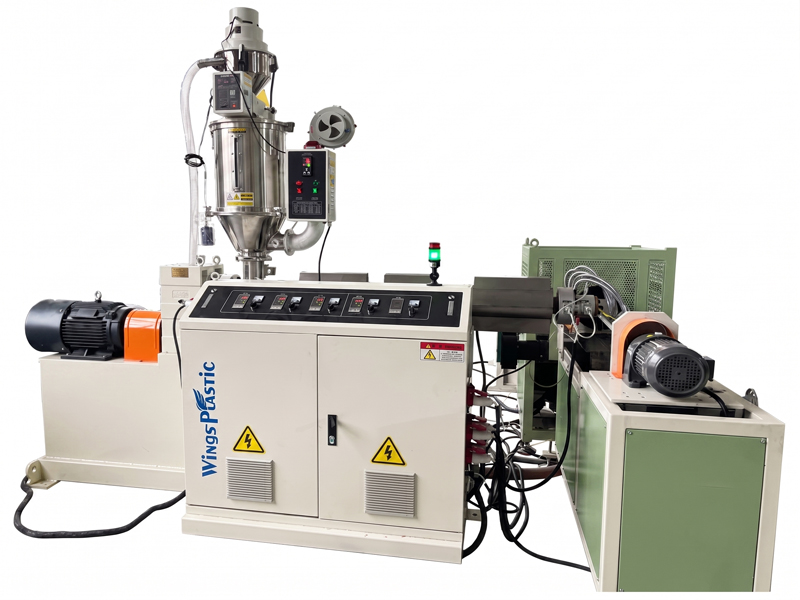

Constructed with 38CrMoAl nitrided steel for maximum durability. Available in SJ-40/30 and SJ-50/33 configurations to match specific output requirements.

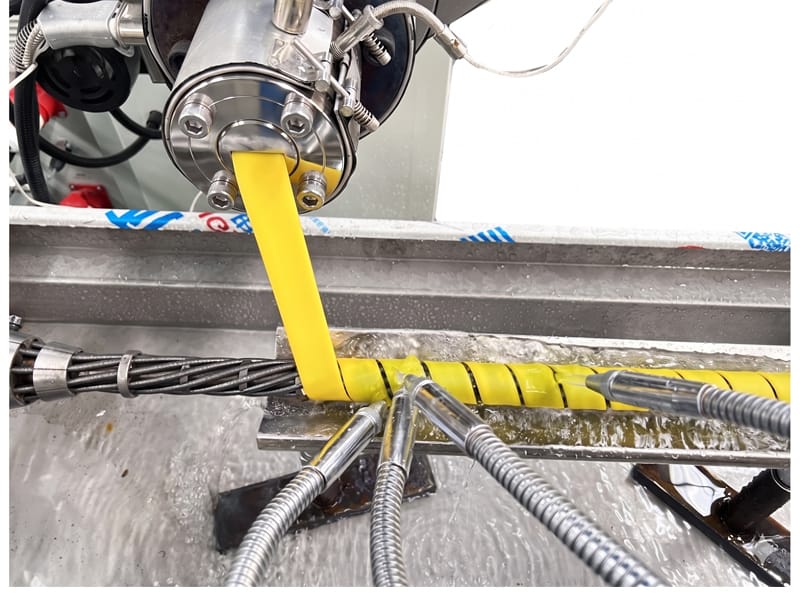

Forged from 45# mold steel with optimized flow channels. Supports co-extrusion dual-color, multi-color stripes, flat, or curved profiles.

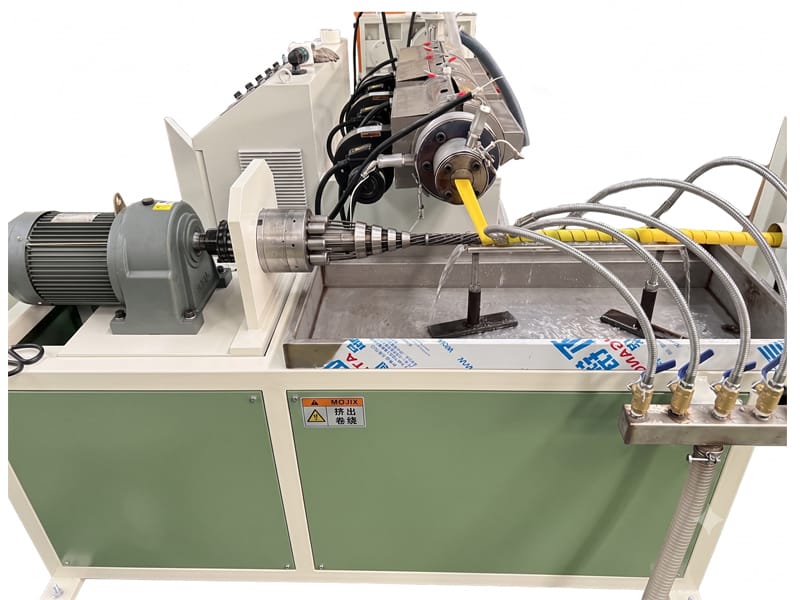

Features a stainless steel transport spring and high-hardness nitrided lock mold. Integrated with a 304 stainless steel water tank for instant, uniform cooling during wrapping.

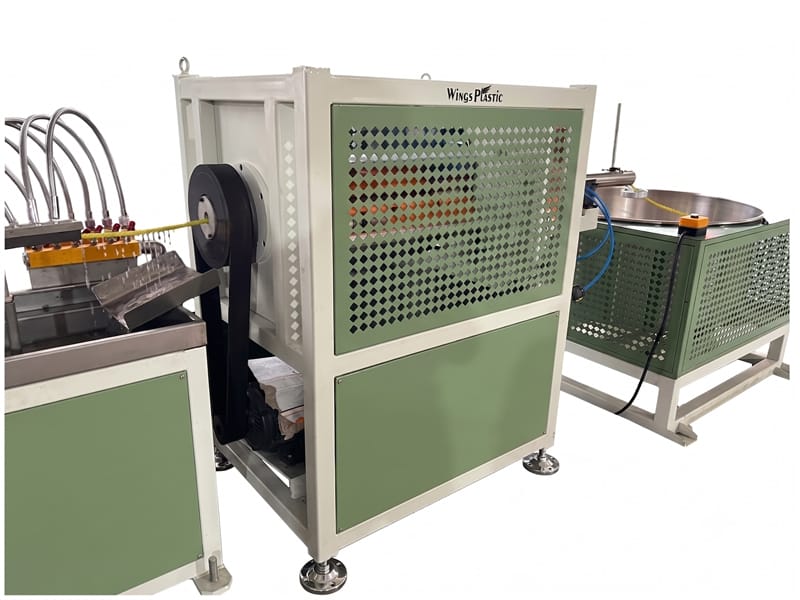

Utilizes rotary centrifugal force and belt traction for precise diameter and bandwidth adjustment. Equipped with automatic clamping, rotary encoder meter counting, and a rapid pneumatic cylinder cutter.

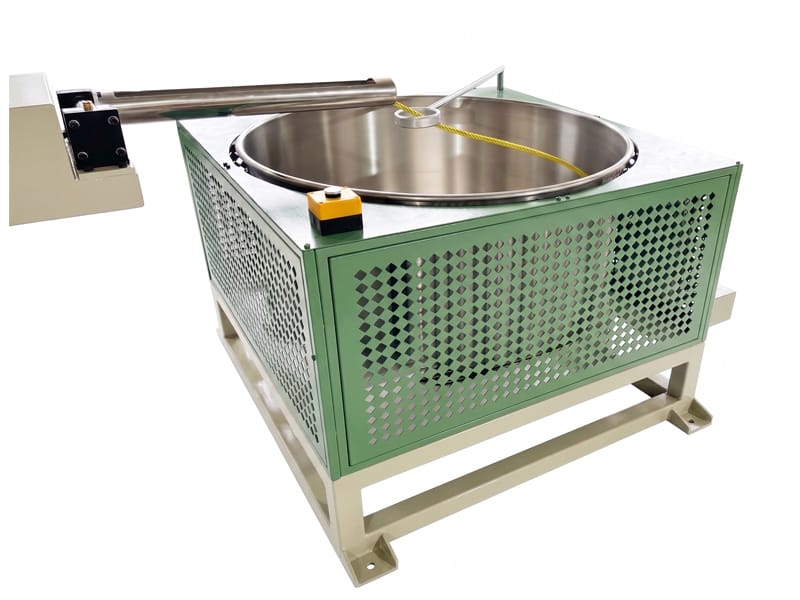

304 stainless steel cylinder design with centrifugal force winding, fully adjustable via Variable Frequency Drive (VFD) speed regulation for neat finished guards.
| Model Series | Protector Diameter Range | Typical Application | Production Method | Extruder Model | Motor Power | Production Output | Line Speed |
|---|---|---|---|---|---|---|---|
| WP-SW-24 (Micro Profile) | 4 - 24 mm | Electrical Cable & Wire Protection | Inline Slitting (Method 1) | SJ-40/30 | 11 kW | 20 - 40 kg/h | 1 - 8 m/min |
| WP-SW-50 (Small Profile) | 10 - 50 mm | Mixed Cable & Hose Protection | Tape Wrapping (Method 2) | SJ-45/33 | 11 kW | 20 - 40 kg/h | 1 - 3 m/min |
| WP-SW-160 (Large Profile) | 50 - 160 mm | Hydraulic Hose Protection | Tape Wrapping (Method 2) | SJ-50/33 | 22 kW | 60 - 80 kg/h | 1 - 2 m/min |
Upgrade to the advanced tape-wrapping technology or get a dedicated slitting line for small cables. Contact us to configure your high-yield PE/PP extrusion line today.
