High-Speed Single Wall Pipe Forming Units

Name: SWC Single Wall Corrugated Pipe Forming Units
Brand: Wings Plastic

The precision core of flexible corrugated pipe manufacturing. Featuring 38CrMoAl nitrided block tracks, pure gear transmissions, and advanced water cooling systems to ensure ultra-fast, stable, and customizable continuous pipe forming.

High-speed single wall corrugated pipe forming unit and flexible hose corrugator block system

Specialized SWC Forming Unit Series

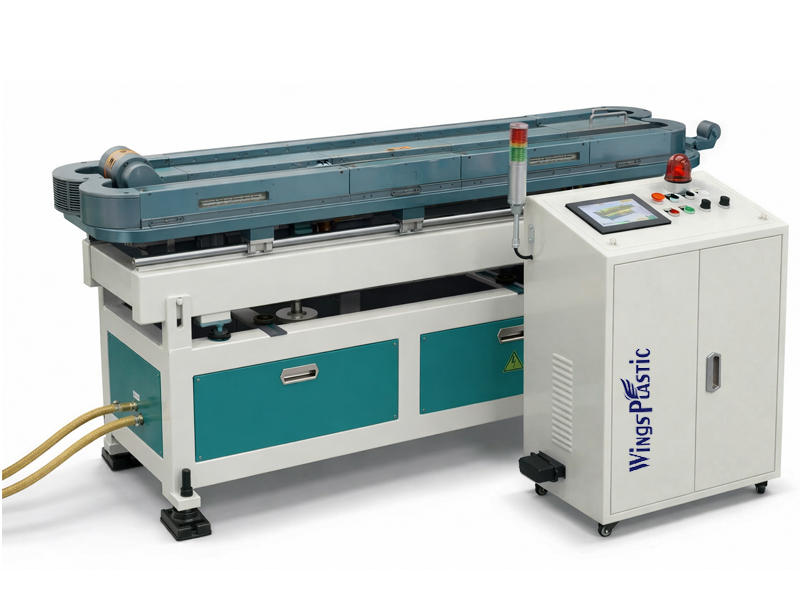

High-speed SWC pipe forming unit with pure gear transmission

High-Speed Forming Units

Drive System: Pure gear transmission ensuring zero block slippage and maximum precision at high forming speeds.
Cooling: Closed-loop all-around water cooling channels within the blocks, enabling extreme forming speeds up to 40 m/min.
Material: Constructed with 38CrMoAl nitrided steel for high hardness and extreme wear resistance during continuous operation.
Adjustment: Motorized automatic height adjustment with precise manual horizontal positioning.

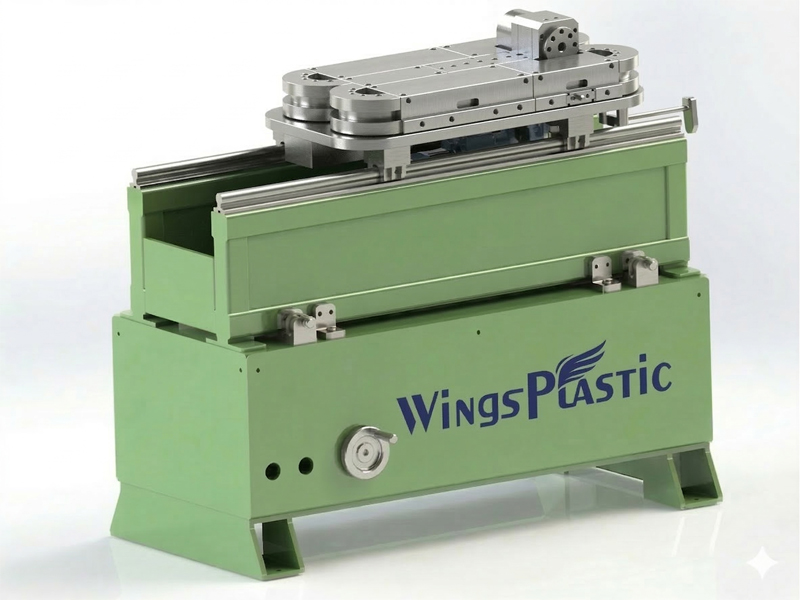

Small diameter single wall pipe forming unit for micro-conduits

Small-Diameter Forming Units

Application: Specifically developed for the precision forming of micro-conduits with an inner diameter (ID) of 4.5mm - 9mm.
Forming Tech: High-precision micro-vacuum forming combined with highly efficient water cooling track systems.
Material: Mould blocks built entirely with highly durable 38CrMoAl nitrided steel to maintain micron-level tolerances.
Adjustment: Compact and highly responsive manual controls for both vertical and horizontal unit positioning.

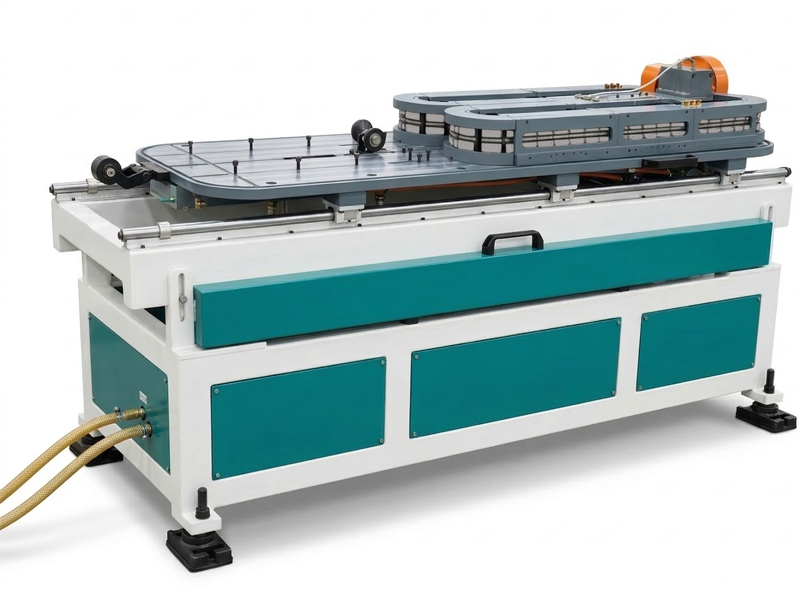

Adjustable length flexible hose forming unit for basin drains and washing machine hoses

Adjustable-Length Forming Units

Application: The ultimate tracking unit for expandable drainage pipes, washing machine hoses, and hookah hose production.
Flexibility: "Lego-style" track configuration. Easily adjust physical block running lengths and seamlessly change joint mold positions on demand.
Cooling & Material: Advanced water-cooled 38CrMoAl nitrided steel construction for long-lasting, heavy-duty performance.
Adjustment: Integrated motorized height adjustment paired with manual horizontal tracking control.

SWC Forming Unit Specifications

Forming Unit Model	Pipe Diameter OD (mm)	Mould Blocks Quantity	Unit Driving Motor	Max Forming Speed
SWC-16/52	7 - 16	52 Pairs	2.2 kw	10 m/min
SWC-52/44	10 - 52	44 Pairs	3 kw	18 m/min
SWC-52/72 (High Speed)	10 - 52	72 Pairs	4 kw	36 m/min
SWC-75/60	25 - 75	60 Pairs	4 kw	15 m/min
SWC-110/60	32 - 110	60 Pairs	5.5 kw	12 m/min
