High-performance spiral forming technology designed for manufacturing ultra-flexible, crush-resistant hoses. This vacuum cleaner hose machine is available in Single-Color and Co-Extrusion Dual-Color configurations, perfectly suited for household vacuum cleaners (1.5–3m) and long-distance swimming pool cleaning systems (up to 30m).
Optimized for EVA, PE, and LLDPE compounding, producing high-brightness hoses that withstand constant bending, twisting, and dragging without cracking.
Flexible production switching between short household vacuum cleaner hoses and continuous floating swimming pool hoses up to 30 meters.
Advanced Siemens PLC forming mechanism with an integrated hot melt glue unit ensures a robust, continuous spiral lock with uniform wall thickness.
Precision-engineered for stable, high-speed profile interlocking and spiral hose manufacturing.

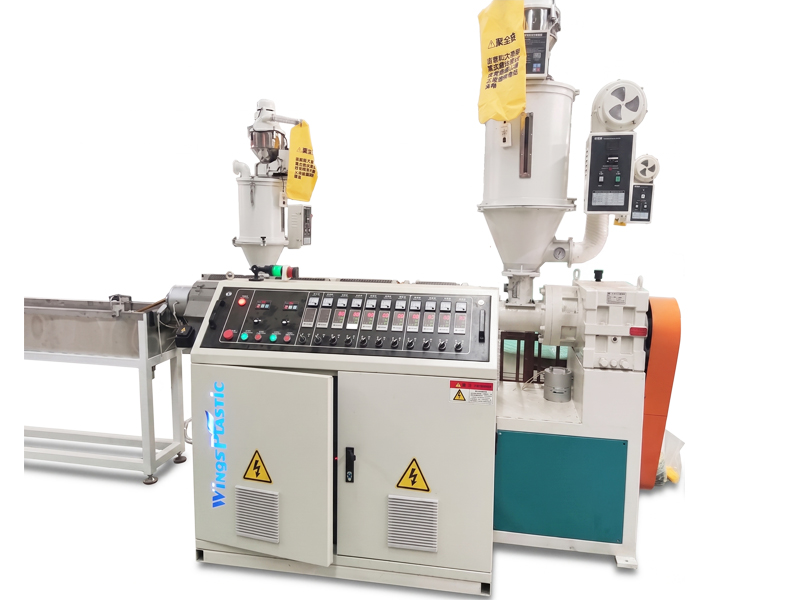

Driven by a 22kW motor, delivering 60-70kg/h output. Specifically designed for LLDPE and EVA compounding extrusion to enhance product brightness. Comes standard with vacuum loader and hopper dryer.

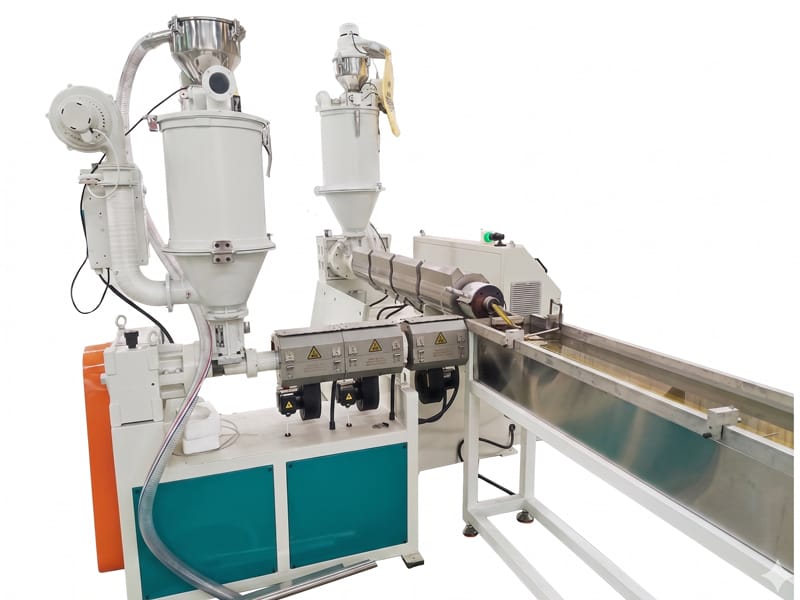

A 5.5kW co-extrusion unit delivering 10-15kg/h. Perfect for coating a colored stripe on the hose surface to create premium dual-color profiles. Includes vacuum feeding and drying system.

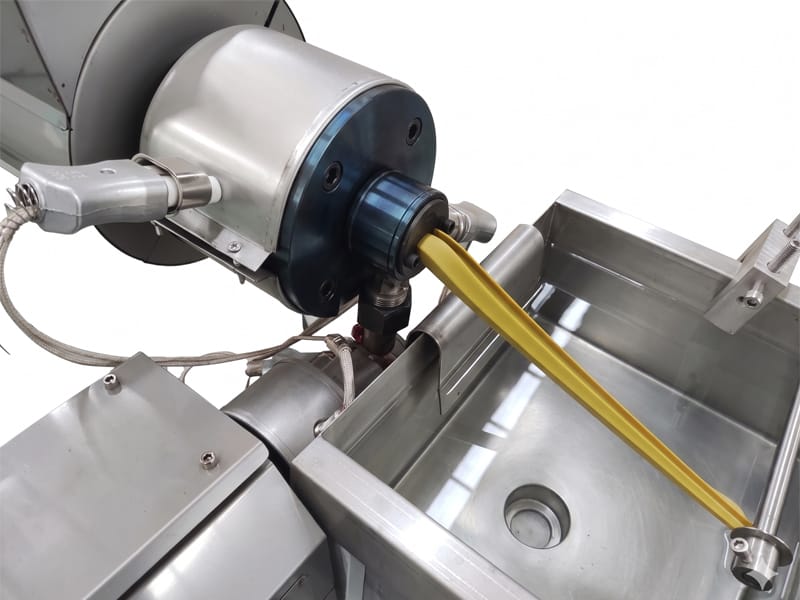

Forged from 40Cr steel and processed by slow-feeding wire-cut EDM (Electrical Discharge Machining), ensuring an exceptionally long lifespan and continuous, stable melt extrusion.

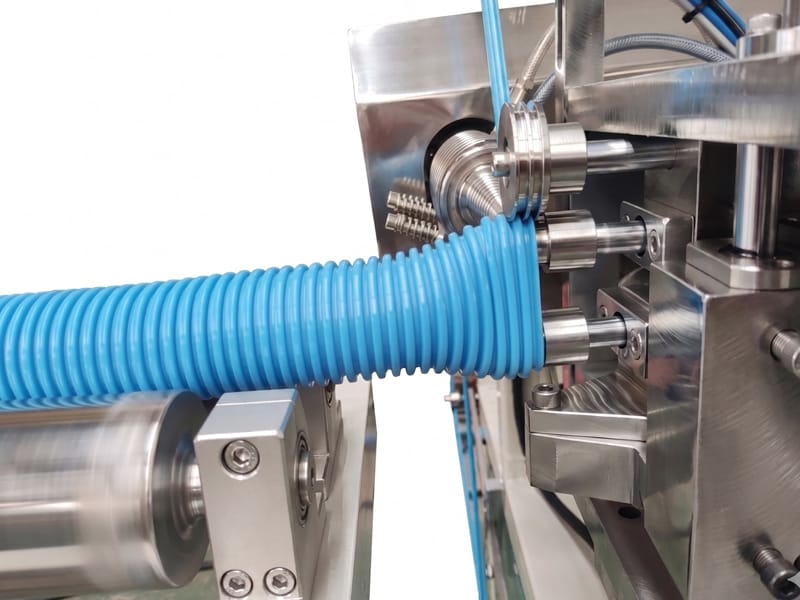

The core spiral winding station. Controlled by a Siemens PLC and precision stepper motors. Features an integrated hot-melt glue extruder to bond the spiral profile firmly, ensuring leak-proof flexibility.

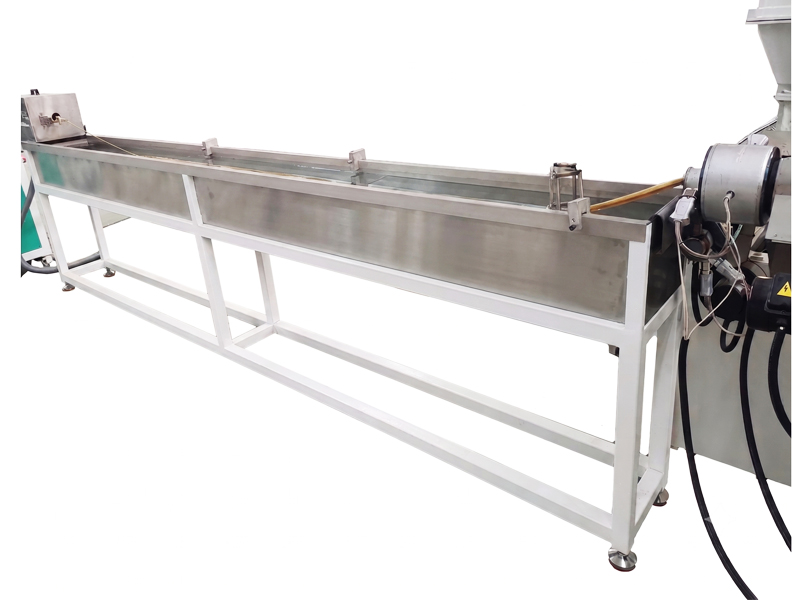

Constructed from premium 304 stainless steel. Equipped with high-efficiency dewatering fans, dual inlet/overflow ports, and fully supports industrial water chiller circulation systems.

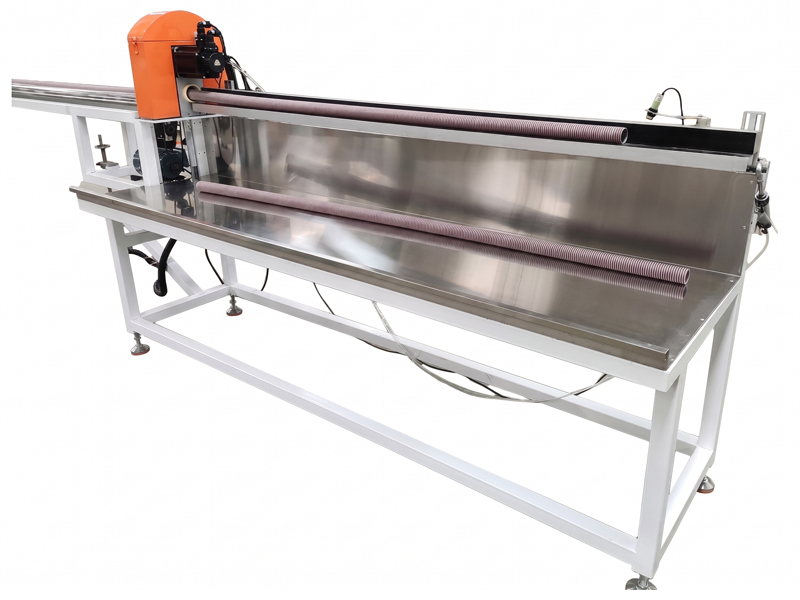

Features lathe-machined aluminum transport rollers for vibration-free feeding. Utilizes a servo motor flying knife with Panasonic optical sensors for precision fixed-length or timed cuts. The tilting rack supports up to 2.5m stacking.
| Specification Parameter | System Details |
|---|---|
| Overall Dimensions (L×W×H) | 14.0m × 2.2m × 2.7m |
| Total Installed Power | ~60 kW |
| Output Capacity | 50 - 70 kg/h |
| Max Production Speed | 3 m/min |
| Applicable Materials | EVA, LLDPE, PE (Single or Dual-Color) |
| Typical Applications | Vacuum Cleaners (1.5–3m), Pool Cleaners (up to 30m) |
Whether you need standard single-color spiral hoses or advanced dual-color pool cleaning lines, our engineering team is ready to configure the perfect solution.
