The Ultimate Plastic Pipe Corrugator: Leveraging the superior thermal conductivity of premium aluminum alloy blocks combined with forced air cooling, this corrugated pipe machine delivers reliable, high-quality pipes without the massive capital investment and maintenance overhead of complex closed-loop water infrastructures.
Utilizes high-capacity fan systems to channel air directly through the aluminum blocks, eliminating the need for expensive water chillers on your plastic pipe corrugator.
Lightweight yet highly conductive aluminum blocks ensure rapid heat extraction and consistent, flawless pipe wave profiles during continuous extrusion.
The simplified mechanical cooling structure of this corrugated pipe machine drastically reduces scaling issues, operational downtime, and overall maintenance costs.
Industrial-grade components optimized for maximum reliability and ease of operation.

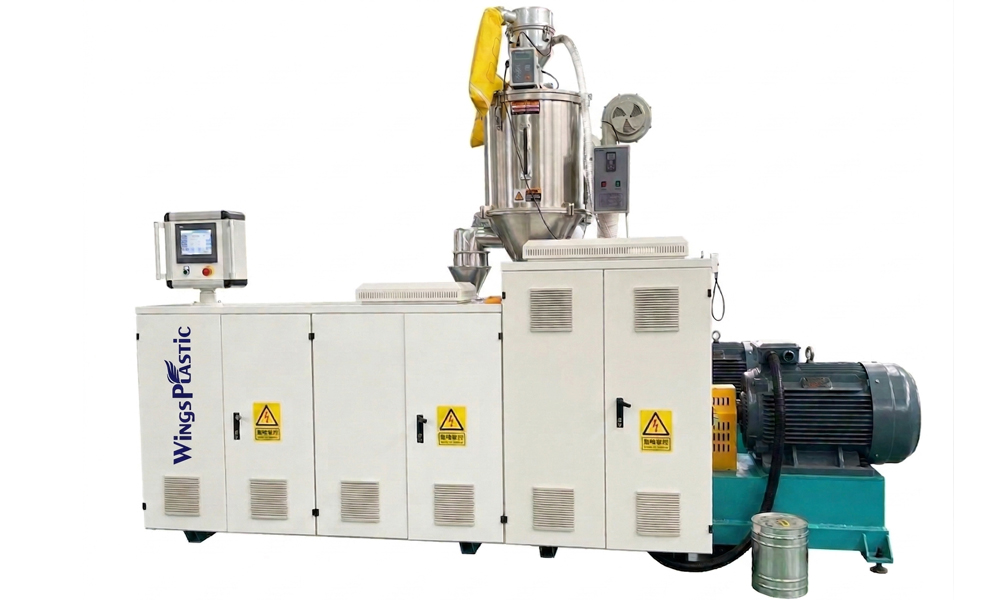

Single-screw extruders featuring 38CrMoAl nitrided barrels and screws for superior wear resistance. Ensures stable plasticization for PE/PP materials, powered by reliable Siemens/ABB motor drives.

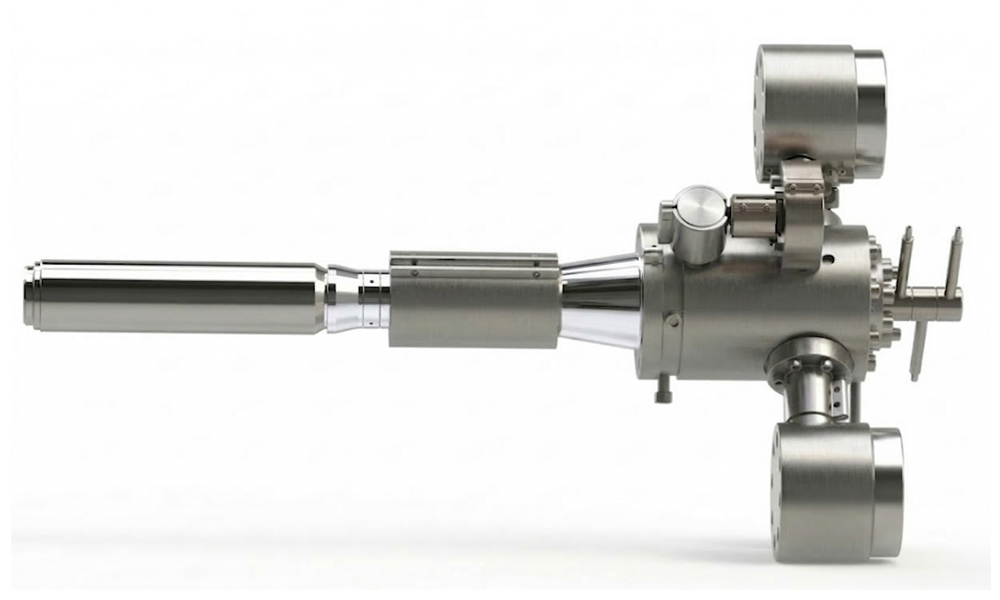

Advanced co-extrusion die head ensuring precise material distribution. The optimized flow channels reduce melt pressure, allowing for seamless inner and outer pipe wall fusion.

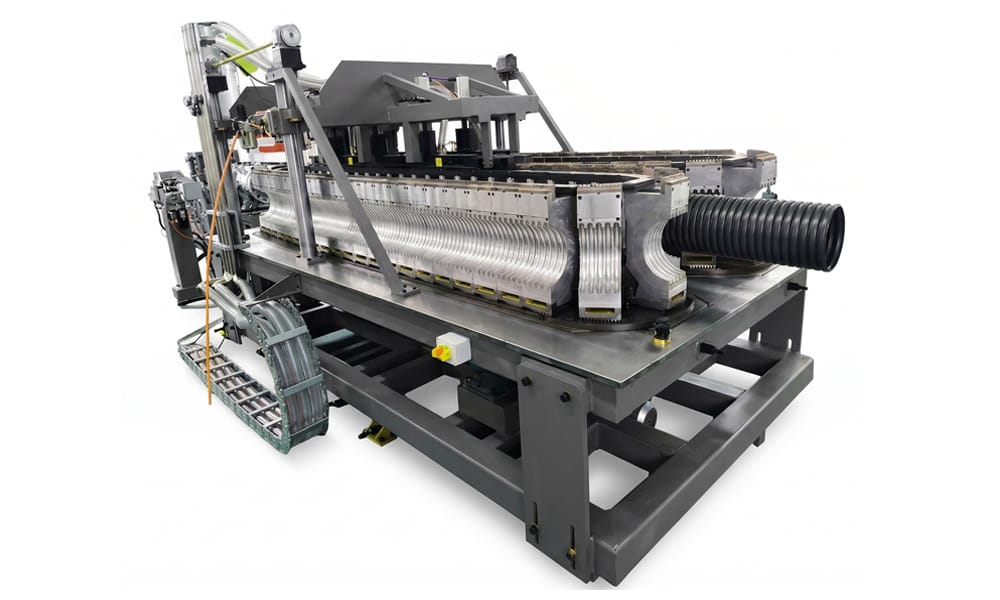

The heart of our plastic pipe corrugator. A precision gear-driven tracking system equipped with high-velocity cooling fans. The open-frame design allows maximum ambient air circulation.

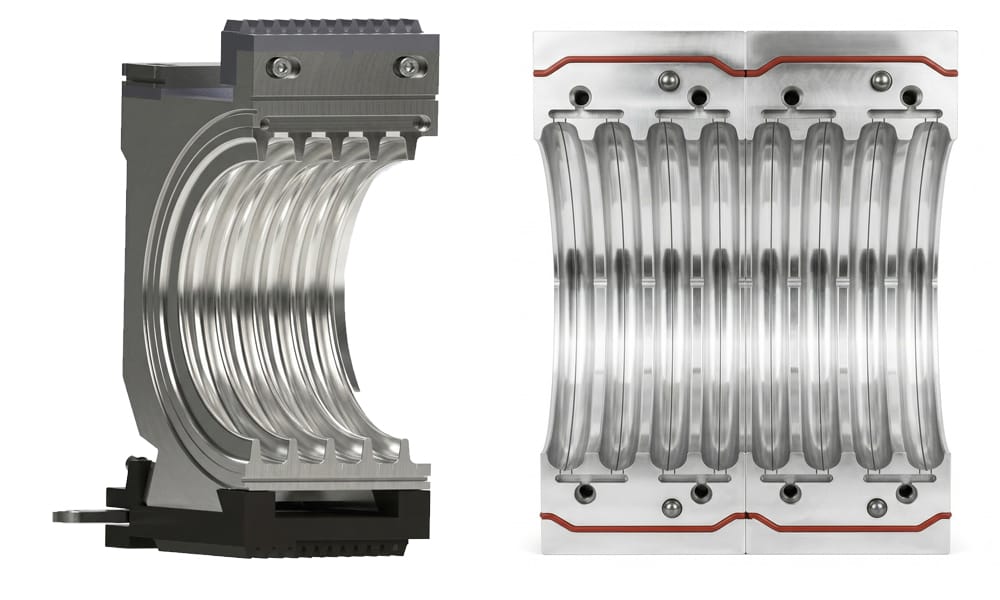

Precision-machined aluminum blocks engineered with optimized air-flow labyrinths. These lightweight blocks conduct heat significantly faster than traditional iron molds, boosting overall line speed.

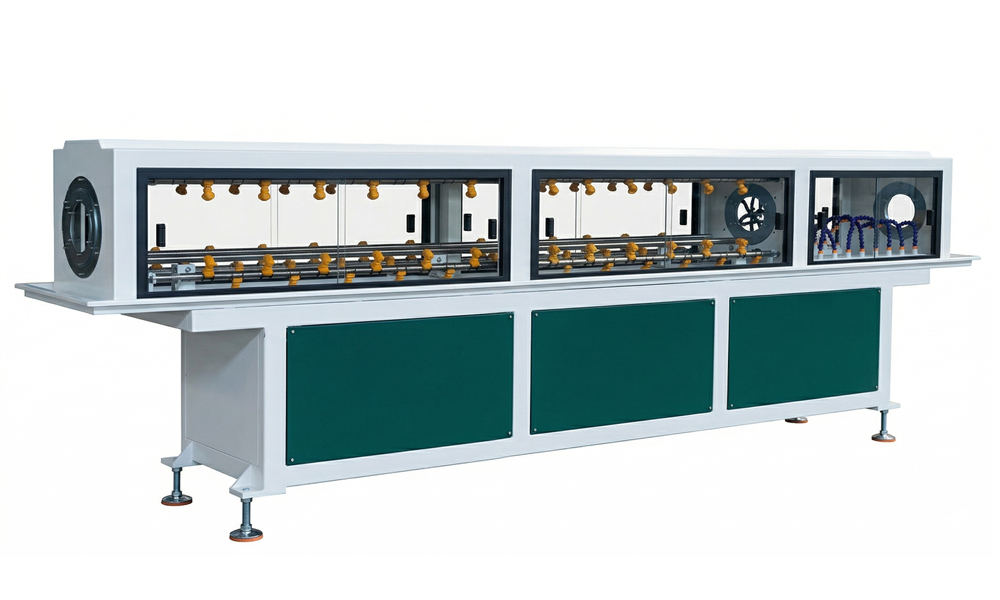

A high-efficiency stainless steel tank designed to rapidly cool and solidify the pipe's outer wall immediately after it exits the plastic pipe corrugator, ensuring exact dimensional stability.
Chipless rotary cutting system driven by stepper motors and premium alloy blades. Completely eliminates workshop dust and noise. PLC-controlled to accurately slice exactly at the pipe's bell/socket position.
Comprehensive technical parameters for WP-200A to WP-500A Air-Cooled Corrugated Pipe Machines.
| Parameter | WP-200A | WP-315A | WP-500A |
|---|---|---|---|
| 1. Line Configuration | |||
| Suitable Pipe Range (ID) | 50 - 200 mm | 110 - 315 mm | 200 - 500 mm |
| Cooling Method | High-Velocity Fan Air Cooling | ||
| Inner Layer Extruder | SJ-50/33 | SJ-65/33 | SJ-75/33 |
| Outer Layer Extruder | SJ-65/33 | SJ-75/33 | SJ-90/33 |
| Mold Material | Premium Thermal-Conductive Aluminum Alloy | ||
| 2. Reference Production Speed (m/min) | |||
| OD 50 - 110 mm | 4.0 - 8.0 | - | - |
| OD 110 - 200 mm | 3.0 - 5.0 | 3.0 - 5.0 | - |
| OD 200 - 315 mm | - | 2.0 - 3.5 | 2.0 - 3.5 |
| OD 315 - 500 mm | - | - | 1.0 - 2.0 |
* Note: Production speeds are reference values. Actual output varies based on raw material quality, operator proficiency, and specific ring stiffness requirements.
Perfect for mid-scale civic projects requiring reliable protection and drainage solutions.
Excellent for burying fiber optic cables and power lines, offering sufficient ring stiffness with highly economical production costs.
Ideal for residential area stormwater drainage and landscaping water management where extreme heavy-duty traffic loads are not a factor.
Cost-effective corrugated pipes are widely used in farmland drainage networks, helping modern agriculture manage water levels efficiently.
Looking for a reliable plastic pipe corrugator without the massive water-cooling overhead? Contact our experts for a customized WP-Series quotation.
Get a Turnkey Quote →
