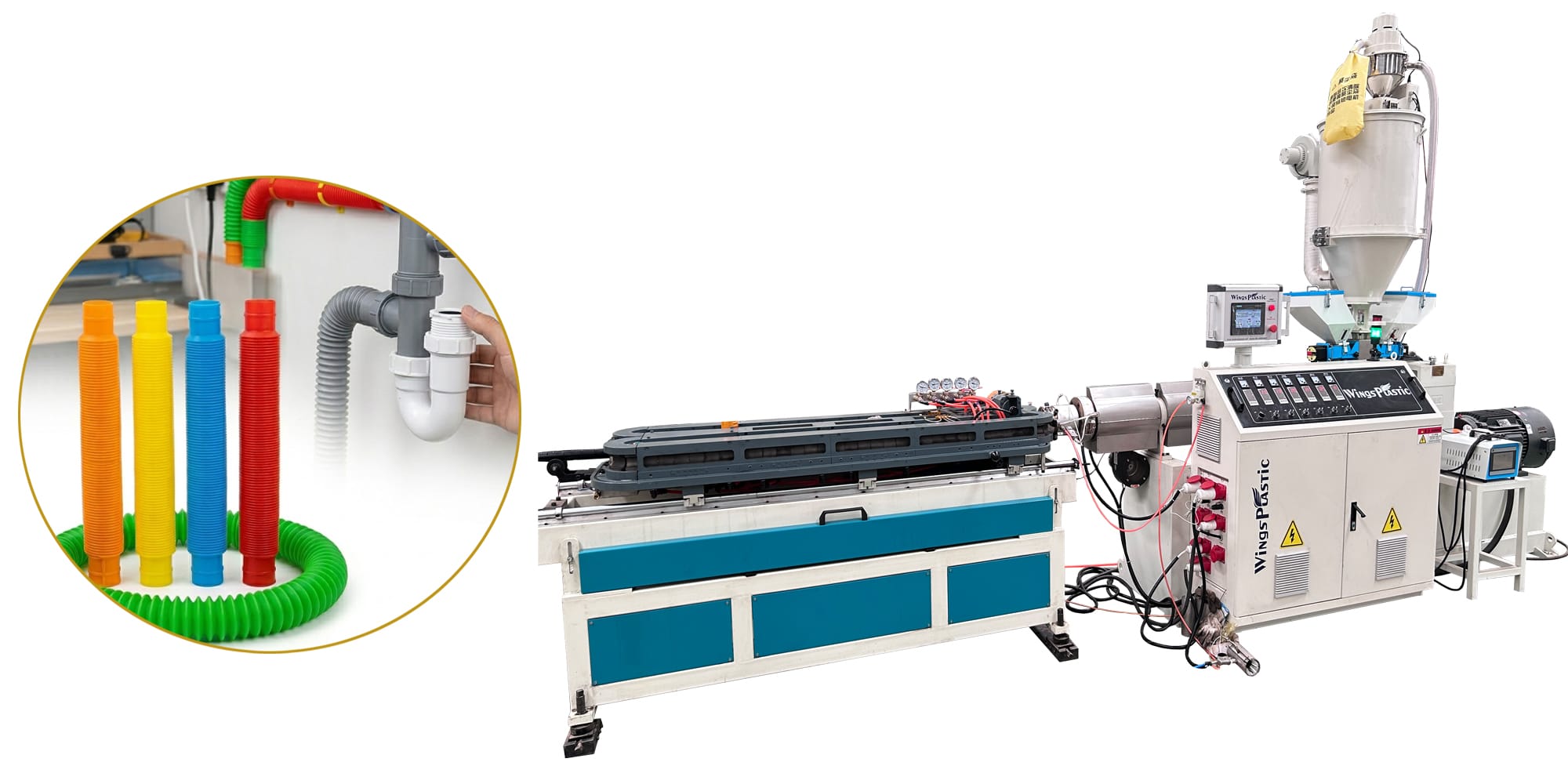

The Ultimate Appliance & Plumbing Solution: A turnkey flexible hose extrusion line specifically engineered for highly flexible plumbing tubes and expandable sink drains. Built upon our heavy-duty expandable drain corrugated pipe machine platform, it features innovative "Lego-style" adjustable block tracking, vacuum cuff-forming technology, and an integrated auto-shrinking & cutting system, guaranteeing flawless flat sealing surfaces and fully automated downstream processing.
The "Lego-style" corrugator track can be seamlessly extended or shortened, instantly adapting to any desired expandable hose segment length without buying new machines.
Equipped with a highly specialized downstream unit that automatically shrinks and cuts expandable sink drains, drastically reducing manual labor costs for plumbing manufacturers.
Specialized vacuum-assisted molds create perfectly flat, precise joint cuffs directly on the washing machine hose line, ensuring 100% leak-free plumbing connections.
A highly customized flexible hose extrusion line designed to eliminate manual downstream labor for plumbing and appliance pipes.
Utilizes a high-torque single-screw extruder optimized for flexible PE/PP materials. Ensures stable plasticization and continuous output for the washing machine hose pipe corrugator, powered by top-tier gearboxes and electrical drives.
Forged from tempered 40Cr steel to prevent thermal deformation. The internal flow channel is specifically engineered to handle the rapid melt pressure changes required when switching between corrugated waves and flat-cuff extrusion.

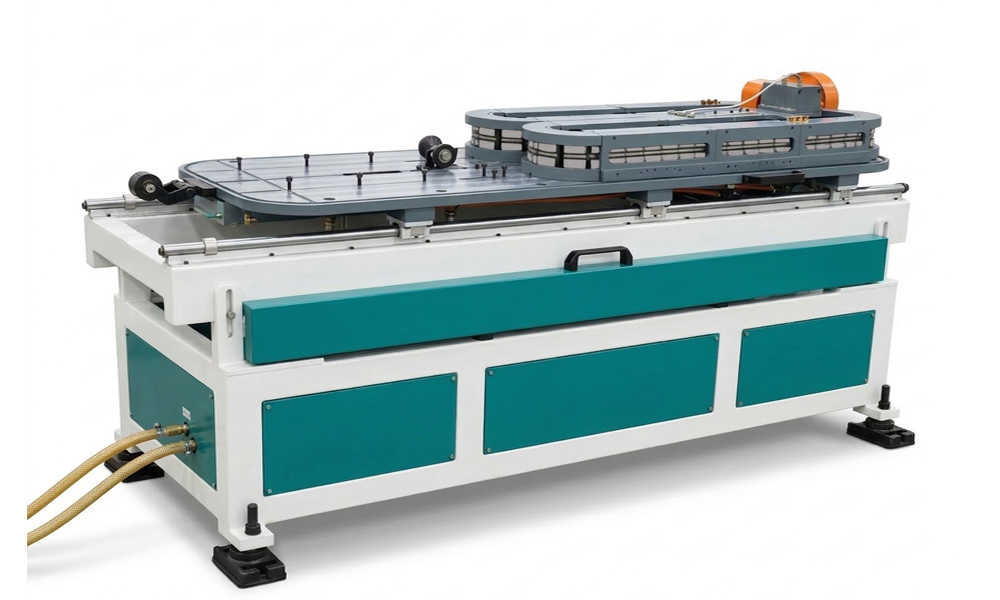

A revolutionary gear-driven adjustable length corrugator that allows operators to physically extend or shorten the mold tracking length like Lego blocks, effortlessly adapting the expandable drain corrugated pipe machine to new market sizes.

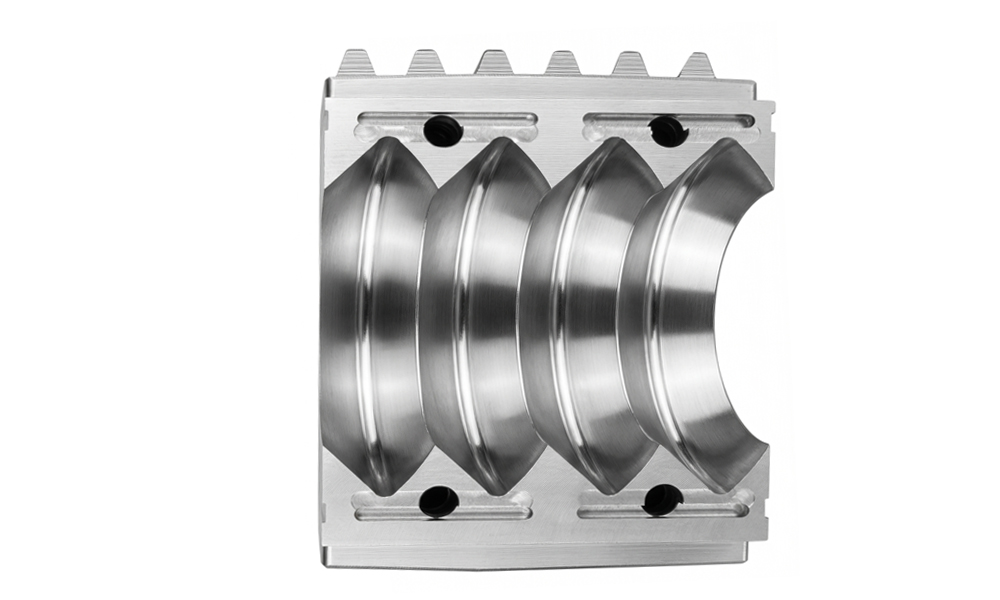

Standard wave sections utilize dual-cavity air-cooling for extreme speed. However, the specialized joint/cuff sections utilize strong vacuum suction technology to ensure the flat connector is perfectly round, flat, and defect-free.

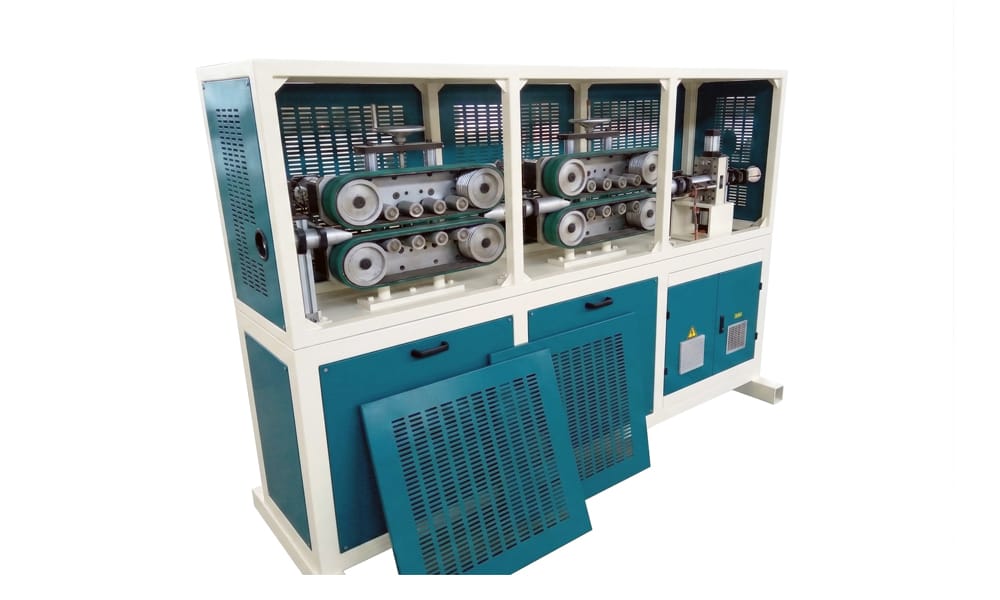

Designed specifically for PE/PP sink drain manufacturing, this integrated downstream machine performs automatic pipe shrinking and cutting simultaneously. Available with either advanced optical vision or reliable mechanical tracking control options.

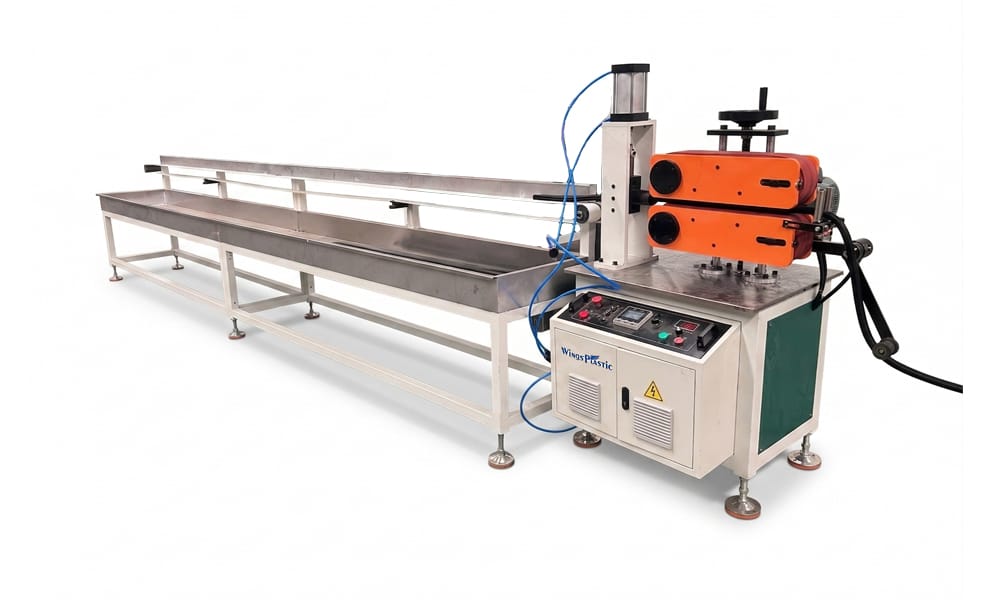

Dedicated for washing machine hose setups. Features a synchronized variable-speed haul-off, a precise meter-counting pneumatic cutter, and an automatic air-blow stacking rack. Eliminates the need for manual rewinding and manual slicing.
Comprehensive parameters for specialized PE/PP flexible hose extrusion lines.
| Model | Pipe Diameter OD (mm) | Extruder Type (PE or PP) | Max Forming Speed | Standard Moulds Quantity |
|---|---|---|---|---|
| SWC-16/52 | 7 - 16 | SJ40/30 (7.5kw, 20kg/h) | 10 m/min | 52 Pairs |
| SWC-52/44 | 10 - 52 | SJ45/33 (15kw, 60kg/h) | 18 m/min | 44 Pairs |
| SWC-52/72 (High Speed) | 10 - 52 | SJ50/33 (22kw, 90kg/h) | 36 m/min | 72 Pairs |
* Note: Max forming speed of the expandable drain corrugated pipe machine depends on whether the line is producing continuous corrugated rolls or fixed-length hoses with flat sealing cuffs.
The backbone of modern plumbing and household appliance water management.
Manufactures the highly popular expanding and bending drainage pipes used under kitchen and bathroom sinks, optimized by our auto-shrinking downstream equipment.
Produces highly flexible, fatigue-resistant drain hoses with perfectly formed, leak-proof flat connectors engineered specifically for household washing machines.
Delivers continuous, lightweight, and weather-resistant corrugated hoses required for efficient split air conditioning unit drainage systems.
Want to dominate the market with an expandable drain corrugated pipe machine featuring fully automated shrinking and cutting? Contact our engineering team for a customized washing machine hose pipe corrugator setup.
