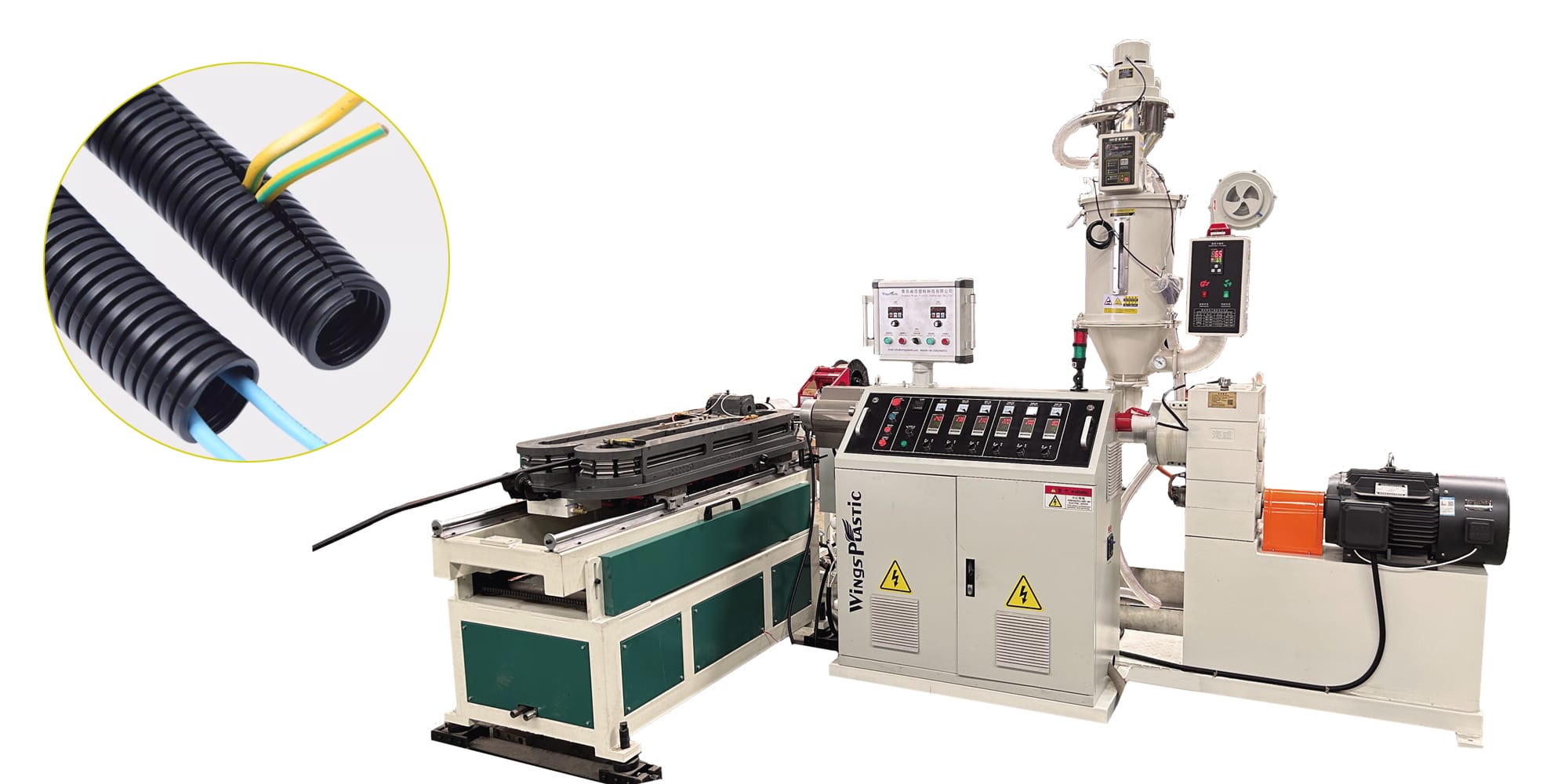

Mature Technology & High Yield: This high-speed flexible conduit making machine is carefully developed based on our proven technology. Engineered as an advanced plastic pipe corrugator, it produces highly flexible, light-weight, and flame-retardant corrugated conduits. Utilizing a gear-driven track system and an 80% coverage sealed water-cooling system, the production speed of this corrugated pipe machine can reach an impressive 10 to 40 meters per minute.
Features an 80% coverage sealed water cooling system on the corrugator, drastically improving the pipe cooling efficiency and molding speed.
Innovative small mould blocks feature a dual-cavity design with motorized up/down adjustment, maximizing your corrugated pipe machine's versatility.
Gear-driven modular tracks combined with automatic oil lubrication push flexible conduit production speeds to industry-leading levels.
Built with uncompromising metallurgical standards and optional upgrades like wire feeders, auto-slitting, and meter-counting coilers.

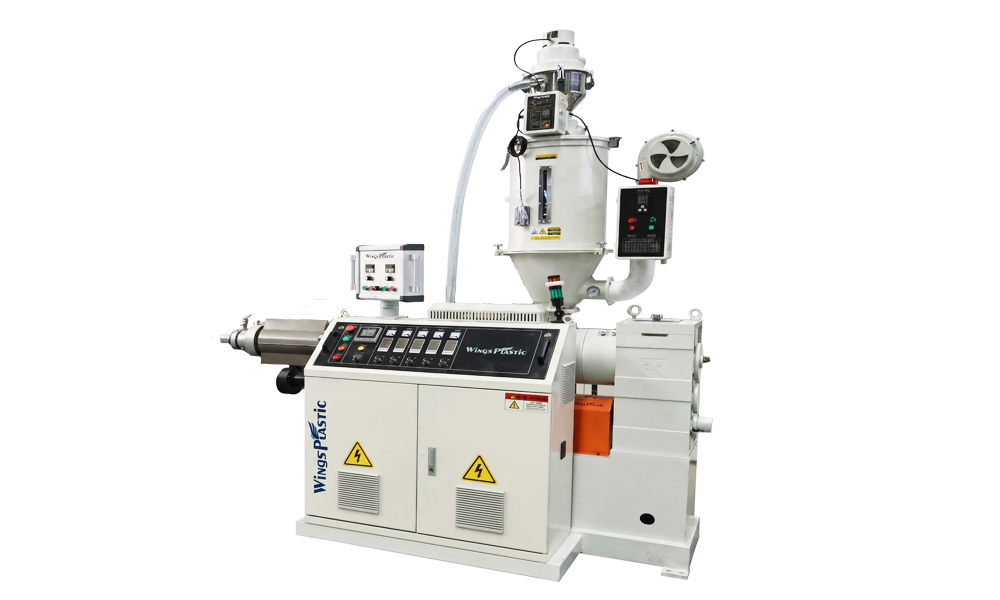

Delivers high output and stable plasticization. Powered by top-brand gearboxes and motors, ensuring a rugged service life of over 10 years.

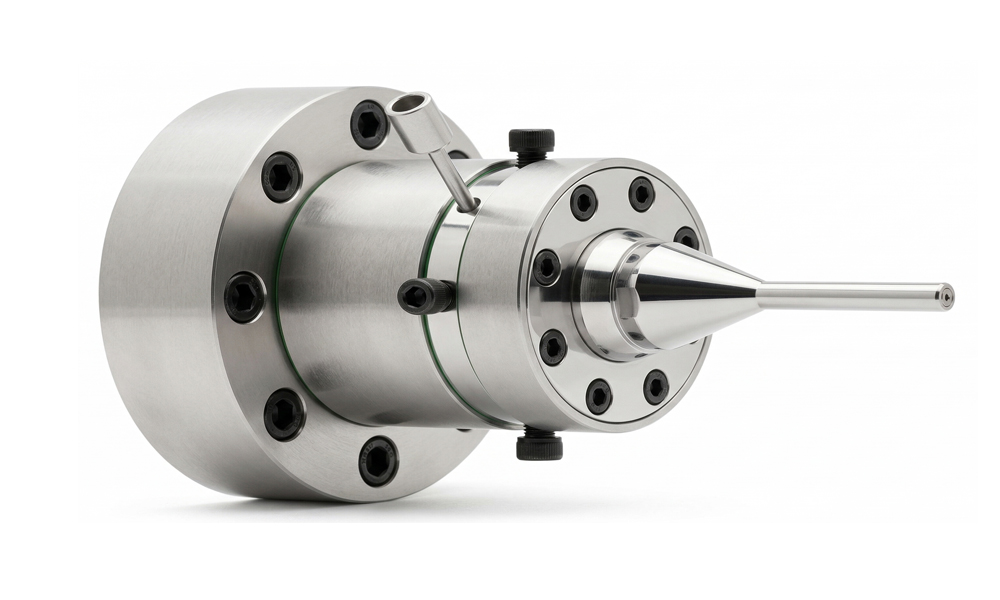

Forged from 40Cr mold steel with quenching and tempering treatment. Features high hardness and thermal stability, preventing material leakage and allowing for easy wall thickness adjustment.

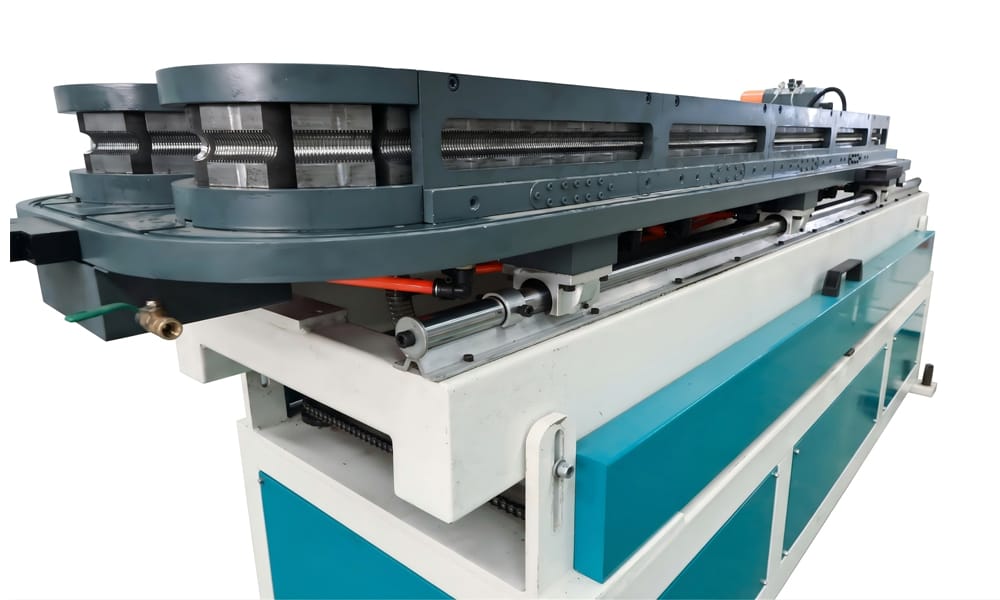

Utilizes an 80% coverage high-flow water cooling structure. Built with 38CrMoAl nitrided steel for ultimate wear resistance. Includes an auto-lubrication system and motorized lifting for dual-cavity mold adjustment.

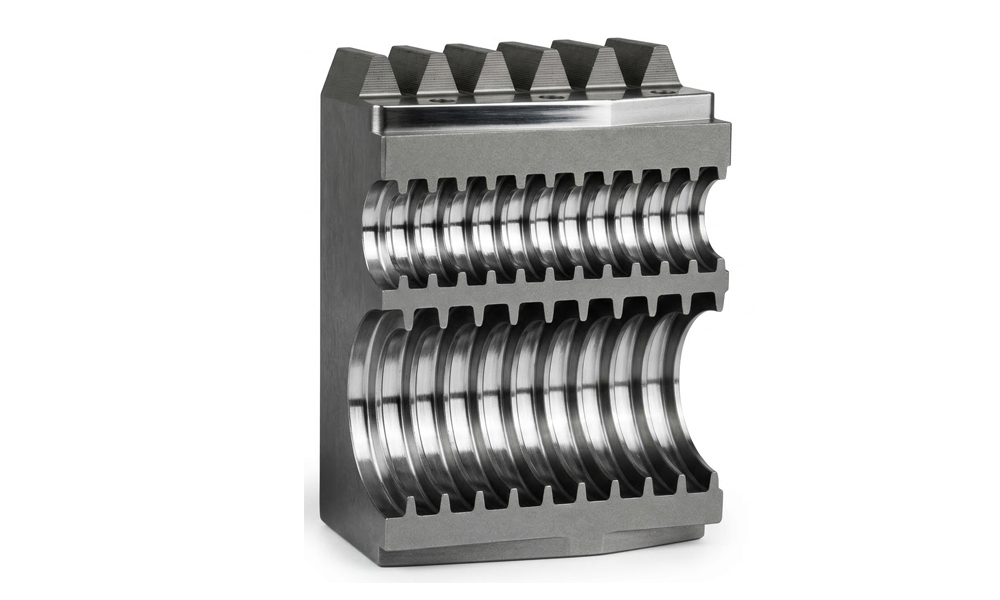

Machined from forged 40Cr steel, followed by nitriding and sandblasting treatments. The surface hardness exceeds 30 HRC, ensuring absolute corrosion and rust resistance over prolonged use.

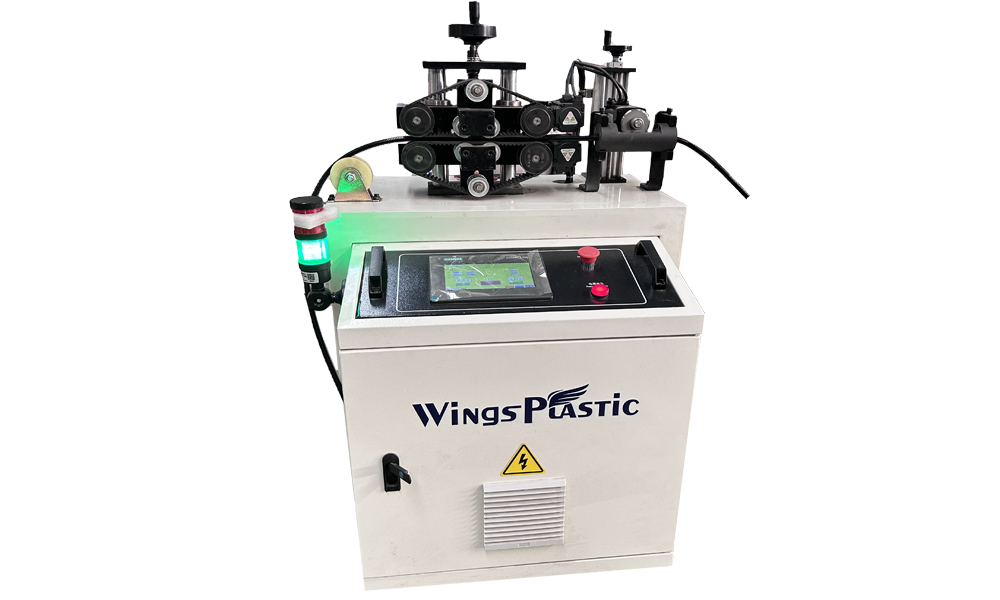

Fully servo-driven and PLC controlled. Employs a high-speed rotating circular blade for fast, uniform, and speed-adjustable slitting. Perfectly suited for automotive and machinery wire harness applications.

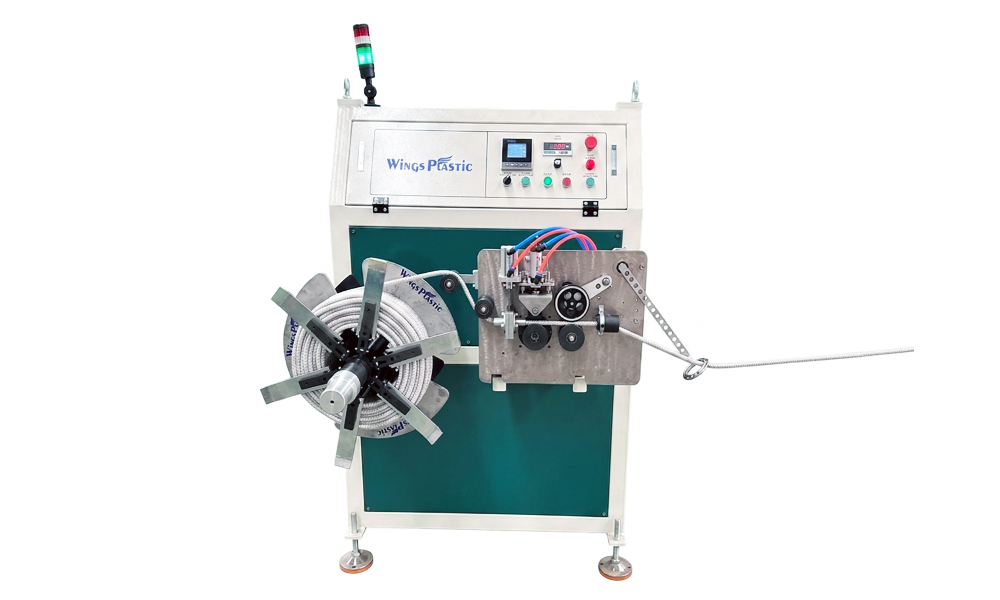

Features a Japanese-style coiling head design for convenient opening and roll changeovers. Equipped with automatic meter counting and cutting functions, offering simplified operation and easy maintenance.
Comprehensive technical parameters detailing our standard and high-speed electrical conduit models.
| Model | Pipe Diameter OD (mm) | Extruder Type (PE or PP) | Extruder Type (PVC) | Max Forming Speed | Moulds Quantity |
|---|---|---|---|---|---|
| SWC-16/52 | 7 - 16 | SJ40/30 (7.5kw, 20kg/h) | SJ45/25 (11kw, 30kg/h) | 10 m/min | 52 Pairs |
| SWC-52/44 | 10 - 52 | SJ45/33 (15kw, 60kg/h) | SJ50/25 (15kw, 90kg/h) | 18 m/min | 44 Pairs |
| SWC-52/72 (High Speed) | 10 - 52 | SJ50/33 (22kw, 90kg/h) | SJ65/25 (22kw, 90kg/h) | 36 m/min | 72 Pairs |
| SWC-75/60 | 25 - 75 | SJ50/33 (37kw, 120kg/h) | SJ65/25 (30kw, 120kg/h) | 15 m/min | 60 Pairs |
| SWC-110/60 | 32 - 110 | SJ70/32 (37kw, 150kg/h) | SJ75/25 (45kw, 160kg/h) | 12 m/min | 60 Pairs |
Delivering high-strength, flexible protection for demanding industrial and civil environments.
Produces highly durable, flame-retardant corrugated conduits ideal for routing internal wiring within complex electrical appliances and building infrastructure.
Provides crush-resistant and flexible sheathing specifically designed to protect delicate control cables and lines within industrial machine tools.
Manufactures small-diameter, highly flexible corrugated tubes required for protecting circuits and wires within commercial and residential lighting installations.
Looking to mass-produce electrical corrugated tubes at up to 40m/min? Contact us for a precise gear-driven corrugated pipe machine configuration.
